Non-standard diesel injector pump?
Moderators: Doone, westonwarrior
Non-standard diesel injector pump?

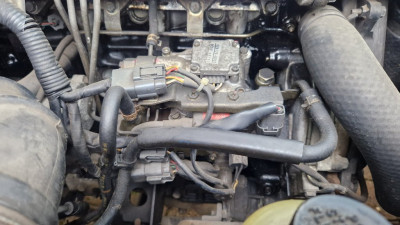

Just recently bought my bongo, I think there's an air leak somewhere in the system because when starting from cold the engine needs to turn over for quite a long time before starting. Can't see any obvious leaks, but looking at it, it looks totally different from all the pictures of pumps I see on here (and the internet in general), however, it looks "stock" with all standard plugs, connections etc...
Can anyone help me identify it?
Can anyone help me identify it?
- g8dhe
- Supreme Being
- Posts: 10268
- Joined: Sun Apr 13, 2008 10:06 pm
- Location: Worthing, West Sussex.
- Contact:
Re: Non-standard diesel injector pump?
Welcome aboard!
Which model of the Bongo range are you, most on here are Friendee's or Ford Freda's ?
Which model of the Bongo range are you, most on here are Friendee's or Ford Freda's ?
Re: Non-standard diesel injector pump?
....and what's the chassis number of the vehicle?
668. The Neighbour of The Beast.
Re: Non-standard diesel injector pump?
It's a W-reg Friendee, 2.5, chassis number: SGL3-400085
Re: Non-standard diesel injector pump?
On series 4 diesels like yours the fuel pump is radically different from earlier versions.
This is the early one: http://www.lushprojects.com/bongopartsm ... no=.html#2
This is the later one: http://www.lushprojects.com/bongopartsm ... mgno=.html
This is the early one: http://www.lushprojects.com/bongopartsm ... no=.html#2
This is the later one: http://www.lushprojects.com/bongopartsm ... mgno=.html
668. The Neighbour of The Beast.
Re: Non-standard diesel injector pump?
That's great info! thanks!
Are there are any known weak points that i should consider investigating first to find my suspected air/fuel leak?
Are there are any known weak points that i should consider investigating first to find my suspected air/fuel leak?
Re: Non-standard diesel injector pump?
The O-Rings will perish and may need replacing
668. The Neighbour of The Beast.
Re: Non-standard diesel injector pump?
If you disconnect an injector pipe crank engine you should get PRESSURISED fuel, if so, look elsewhere. If not, you could carry out a pressure test to the fuel line and or fit a none return valve as close to the IP as possible.
Personally, I would recommend a wee visit to a Diesel Specialist, it could save you in the long run.
Health and Safety must be adhered to. good luck.
Personally, I would recommend a wee visit to a Diesel Specialist, it could save you in the long run.
Health and Safety must be adhered to. good luck.
Re: Non-standard diesel injector pump?
Thanks for the advice, I'll start as you suggest with checking for fuel pressure when cranking from cold and see where that takes me.. Cheers!
