Air con relay

Post by willow2u » Tue May 11, 2021 9:24 pm

Is there a relay for the clutch on the air con compressor
Top
User avatar
g8dhe
Supreme Being
Posts: 10641
Joined: Sun Apr 13, 2008 10:06 pm
Location: Worthing, West Sussex.

Re: Air con relay

Post by g8dhe » Tue May 11, 2021 9:48 pm

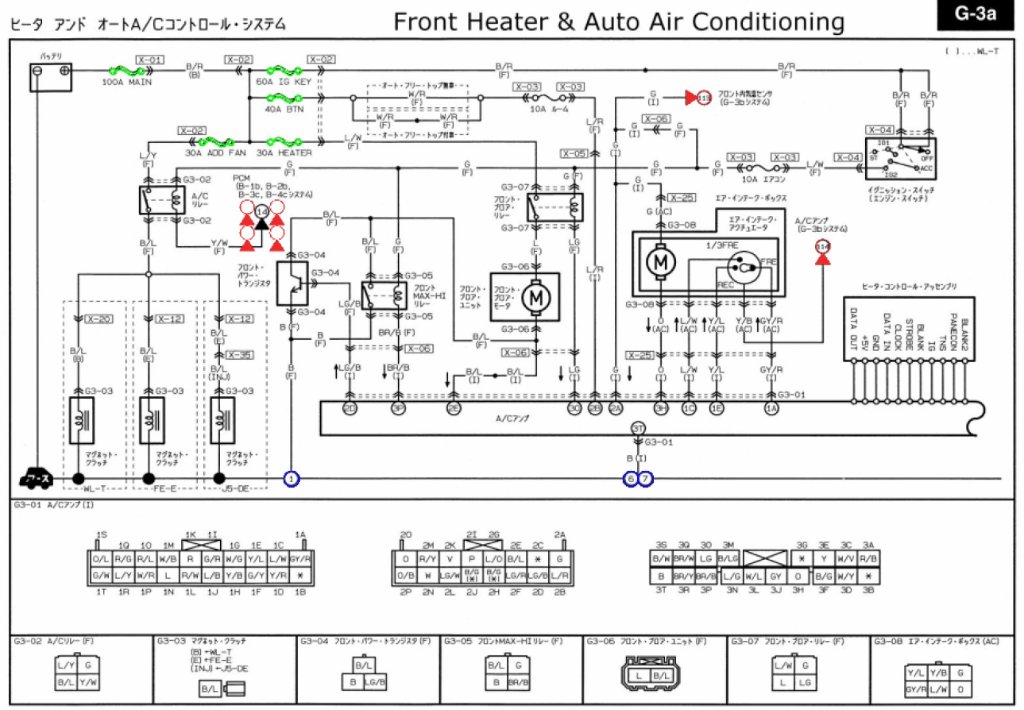

Yes! circuit and location diagrams below G3-02 is the relay top left hand side;
Attachments
Geoff
2001 Aero V6, AFT, full side conversion.
Top
willow2u
Bongolier
Posts: 199
Joined: Tue Jun 30, 2020 2:35 pm

Re: Air con relay

Post by willow2u » Tue May 11, 2021 11:12 pm

Cheers for that I’ve looked at that diagram for ages and knew there was one now I see 👍
