Aft control relay

[tjbrookes2004]

Hi , does anyone have a wiring diagram for the 2 block connectors that plug into the box , I have a micro switch sensor missing on the passenger front side and one of the wires is too short to join so I'm thinking of disabling the warning buzzer .

Thanks

[g8dhe]

Disabling the limit switch will invalidate your insurance!
The switches at the front indicate to the computer that the roof is actually fully down and under the locking shrouds.

[johnnyb]

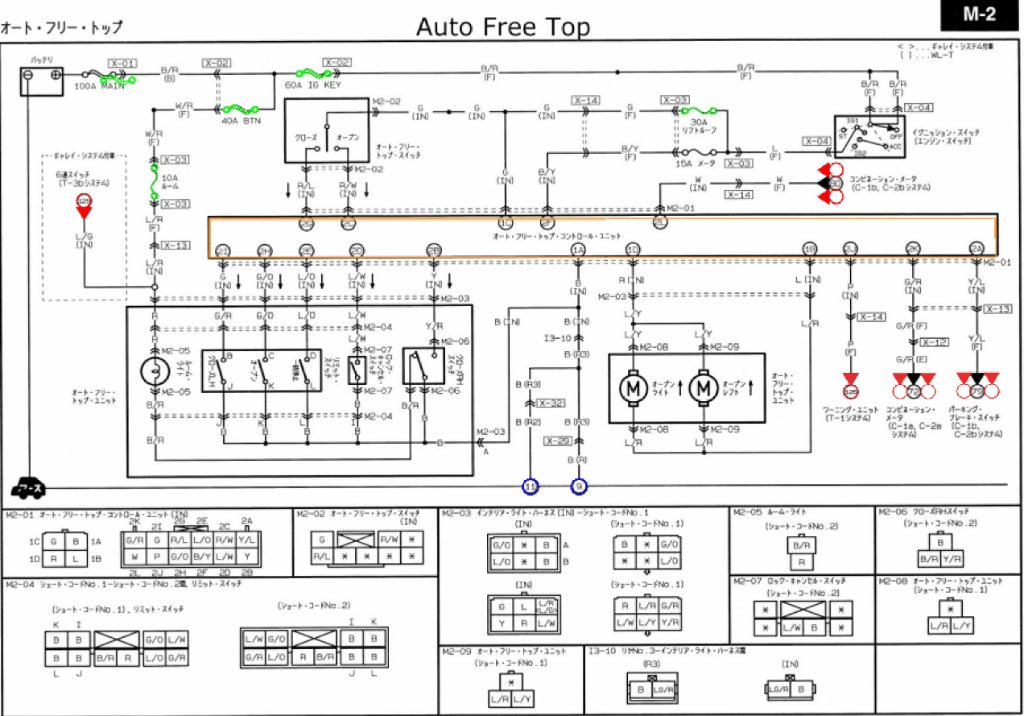

Here's an English version I have made of the AFT 1997 roof schematic, it was for a Bongo roof / Renault Trafic conversion project I'm working on, but it may help somebody on here too.
