Fuse 9 blowing update

Technical questions and answers about the Mazda Bongo

Moderators: Doone, westonwarrior

Post Reply
styn29
Junior Bongonaut
Posts: 17
Joined: Sun Jul 25, 2021 1:40 pm

Fuse 9 blowing update

Post by styn29 » Wed Aug 06, 2025 7:26 pm

Hello again everyone
Just thought I would post an update on the fuse that keeps on blowing in my van. It's 1996 2.5 turbo diesel. It was the 15 amp fuse on the far left hand side , middle row. I had an auto electrician come and look at it today when he initially took the fuse out and put the multimeter on there to create the link. It was reading at roughly 7 amps. He said this was unusually high. He then put his foot down on the accelerator and it slowly started to creep up from 7 amps up to 15 amps and blow the fuse. He then started taking the fuse in and out and listening for clicks. He found a solenoid on top of the engine under the driver seat he unclipped the two electrical connectors and then clipped them back in again. When he started up the van again, the amps had dropped to around 3 to 4 amps and stayed that way. I left the engine running for ages while revving it and the fuse didn't blow again. He said the problem has gone and the only way he can try and trace it is if the problem comes back. So now I'm a bit worried about driving it because even though the problem has gone, he didn't actually fix anything. He did say that sometimes by disconnecting something and plugging it back in again can reset it.
I'm hoping this makes some sort of sense to someone out there as it makes no sense to me and I'm not very confident of driving it about without knowing what the original problem was. I'll try and post a picture of the thing he disconnected.
Thank you ๐Ÿ™‚
styn29
Junior Bongonaut
Posts: 17
Joined: Sun Jul 25, 2021 1:40 pm

Re: Fuse 9 blowing update

Post by styn29 » Wed Aug 06, 2025 7:31 pm

Sorry but I don't know how to post a picture on here..no wonder I couldn't fix my van if I can't even post a picture ๐Ÿคฆ๐Ÿผโ€โ™‚๏ธ
styn29
Junior Bongonaut
Posts: 17
Joined: Sun Jul 25, 2021 1:40 pm

Re: Fuse 9 blowing update

Post by styn29 » Wed Aug 06, 2025 8:32 pm

I've been told it's the vacuum solenoid for the EGR valve
User avatar
g8dhe
Supreme Being
Posts: 10734
Joined: Sun Apr 13, 2008 10:06 pm
Location: Worthing, West Sussex.

Re: Fuse 9 blowing update

Post by g8dhe » Wed Aug 06, 2025 8:35 pm

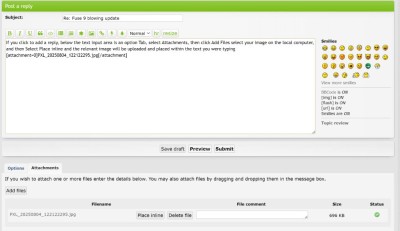

If you click to add a reply, below the text input area is an option Tab, select Attachments, then click Add Files select your image on the local computer, and then Select Place inline and the relevant image will be uploaded and placed within the text you were typing
Screenshot 2025-08-06 203417.jpg
Geoff
2001 Aero V6, AFT, full side conversion.
gilly99
Bongolier
Posts: 104
Joined: Mon Jul 02, 2012 6:20 pm
Location: Bristol, UK

Re: Fuse 9 blowing update

Post by gilly99 » Wed Aug 06, 2025 8:52 pm

Search the fact sheets in the members area... this one gives the fuse box information.

https://igmaynard.co.uk/wp-content/uplo ... usebox.pdf
4wd diesel, 1999 ex tintop with lowline raising roof
Keep a cool head, black ball game.
styn29
Junior Bongonaut
Posts: 17
Joined: Sun Jul 25, 2021 1:40 pm

Re: Fuse 9 blowing update

Post by styn29 » Wed Aug 06, 2025 9:21 pm

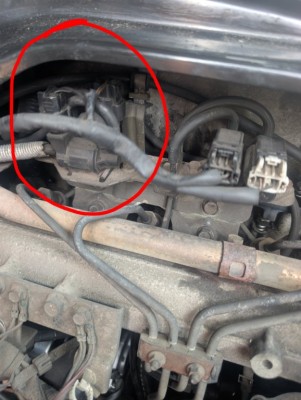

This is the Vacuum solenoid he disconnected. Since reconnecting the engine is running fine but I'd like to change it as apparently if faulty they can get stuck and this will lead to electrical resistance. Would anyone know if these are easy to replace and where I can buy one.
Thanks again to everyone for any help ๐Ÿ™‚
User avatar
g8dhe
Supreme Being
Posts: 10734
Joined: Sun Apr 13, 2008 10:06 pm
Location: Worthing, West Sussex.

Re: Fuse 9 blowing update

Post by g8dhe » Thu Aug 07, 2025 9:03 am

There normally available at the various spares places Mazda Bongo and Bongo Spares certainly;
These companies do a range of spares, not all will have everything so try them all;
For smaller parts its probably best to ring companies as not all the smaller parts make it on to the web sites!
SPARES:
Bongo Land www.bongoland.co.uk/shop/ 0114-2550836
Mazda Bongo www.mazdabongo.com/ 01234-480808
Bongo Spares www.bongospares.co.uk/ 01422-823249
Vosper Parts https://vospersparts.com/ 01752-636494
Auto Jap Spares www.autojapspares.com/ 02476-474848
AutoLinkUK www.autolinkmx5.com/ 01556-509088
SALES & SPARES;
Ian Taylor UK (Stoke on Trent) www.japcarimport.co.uk/ 01782-594125
Southern Bongos (Southampton) www.southernbongos.co.uk 02380-733995
Stephen McWhirter Services (Cumbria) www.stephenmcwhirter.co.uk/ 07585-304362
Dore Service Station (Sheffield) doreservicestation.co.uk/ 0114-236-4691
Fred the Bongo Man (Newbury) Shamrock works. Andover Road, Ludgershall, SP11 9PE https://www.fredthebongoman.co.uk/ 077757 34328
Derwenthaugh Motors (Newcastle) www.derwenthaughmotors.co.uk/ 07596-862711
Bongomaster (Leicester) www.thebongomaster.co.uk/ 07873-314519
Doctor Bongo (Plymouth) www.doctor-bongo.com/ 01752-224651
BREAKERS:
Milton Gough's Shaw Lane Carlton, Barnsley, United Kingdom. 01226 725356 www.facebook.com/Miltongoughs
Bongo Parts https://www.bongo-parts.co.uk/ 01403-741913
Geoff
2001 Aero V6, AFT, full side conversion.
styn29
Junior Bongonaut
Posts: 17
Joined: Sun Jul 25, 2021 1:40 pm

Re: Fuse 9 blowing update

Post by styn29 » Thu Aug 07, 2025 12:53 pm

Thanks again Geoff ..top man ๐Ÿ‘๐Ÿผ๐Ÿ‘๐Ÿผ๐Ÿ™‚
