I have have position it through a clip on the air intake bracket at the back of the cylinder head.


http://i1094.photobucket.com/albums/i44 ... CN0628.jpg

Pm sent.

Hi dave
Having just myself fitted a new cylinderhead I,ve noticed you quoted 10 thou for valve clearances. using infomation on this forum I have set intake valves at 4 thou or 0.10mm and exhaust at 8 thou or 0.20mm.
When i purchased my fully built up head I found all the valve clearances miles out ...

Northern Bongolow wrote:have you kept the old head,if so can i borrow it for a look see (i promise not to weigh it in).
just in the interest of science .
how are you doing on the replacement.

Yeah no problem.

got to wait till monday to order from club shop cause of scottish bongo bash.

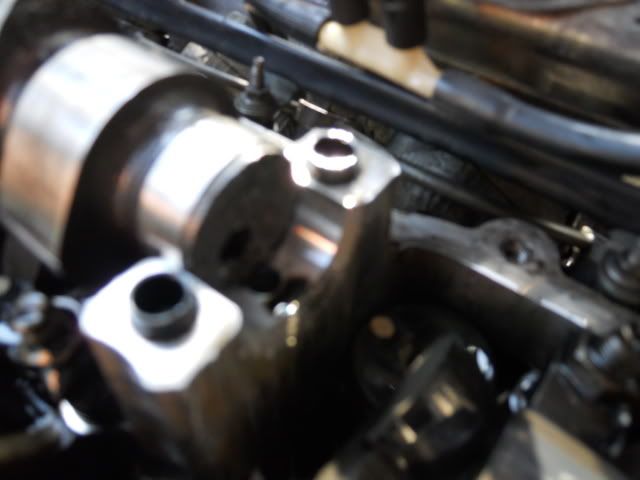

thats very interesting,so are you saying that the gasket and head are/were fine,apart from the fact that the cam pedestals are out of line.
the motor must have been running on the edge(probably generating to much heat) until the hose went and lifted the head a tad more thus trapping the cam.
i ...

Yeah funny you should mention that because I've got service doc's stating cam belt was changed About 15k miles ago but the belt looked well worn & not far off failing so it must of been working hard. All valve's & pistons are intact.

Hi all found this one on the web at £26.49.

http://www.marinesuppliesdirect.co.uk/s ... -770-p.asp

One other thing to remember about oil is that its hyroscopic (not sure i spelt it right but it mean absorbs water) so your oil is deteriating from the moment its pured in no mater how little miles you do.

From all the information I've got now i'm pretty sure I know why the engine failed.
Sometime in the past before i purchased it(only had the bongo 6 months) this head has overheated & distorted the head. It was skimmed up then refitted back. When the camshaft snapped in half at the middle bearing(Its ...

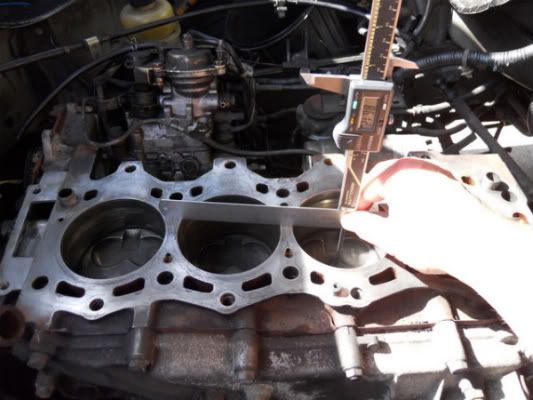

I checked the pistons 3 + 4 where of the same depths as 1 + 2 as the latter was not affected by the camshaft breakage.

Its a clean break!

The middle of cylinder head has been pushed up out of shape.

Have finally got round to taking the head. Cleaned it up & visually it looked ok no cracks etc but decided to have it checked out by having it inspected by a local engineering firm that specializes in engine rebuilds. They armed with a straight edge took one look at it and said it had been badly ...

Forget the sniffer test whatever happened inside the engine when it went bang has broke the cam shaft clean in half -photos to follow. With the help from Northern Bongolow who lives locally, we set about to find route cause of the coolant leak in the first place. this turn out to be perished hose ...
